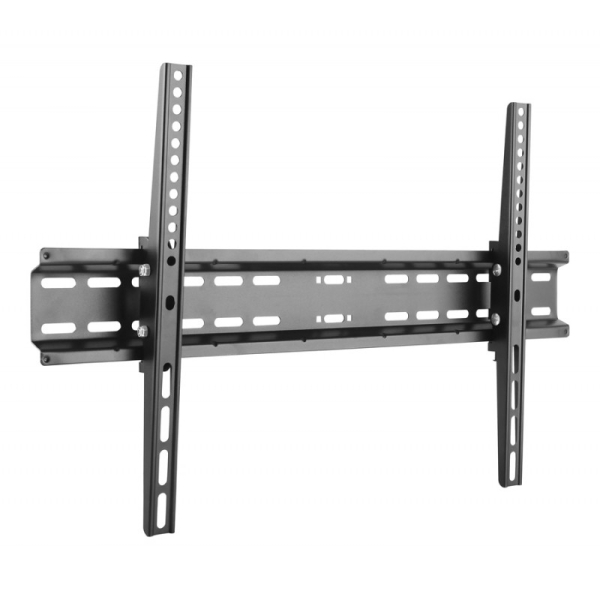

KL25-46T tilt wall mount is compatible with any 37"-70" flat panel TV and the load-bearing up to 35kgs. Super Slim design sits just 50mm from wall to complement the sleek look of ultra-thin TVs.
Suited for VESA hole up to 600x400. Adjustable +5°~-10° tilting . It allows the TV to slide left and right on the wall plate, so it’s positioned exactly where you want it.
The power coating finish guarantees the durability and the simple construction is easy to install.
- Lateral shift brackets enable fast alignment
- Free-tilting design for multiple monitor viewing angles
- Installation is as easy as 1-2-3
- Slim design provides low profile
Περιεχόμενα συσκευασίας
- Βάση
- Βίδες
- Εργαλεία
- User manual
| By Function | Tilting |
| By Mounting Pattern | Universal |
| Material | Steel |
| Pipe Size | No |
| Surface Finish | Powder Coating |
| Available Color | Black |

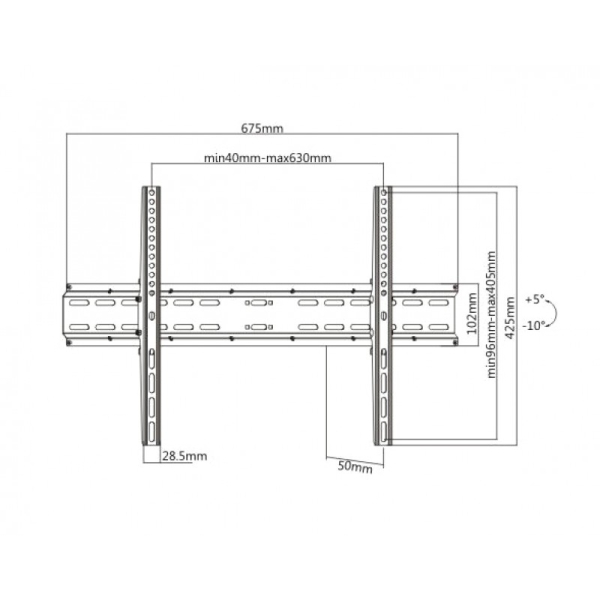

| Product Size | 50x675x425mm |
| Suggested Screen Size | 37"-70" |
| Installation | Solid wall, Double Stud |
| Rated Load | 35kgs/77lbs |
| Strength tested | 3 times approved |
| Max.Hole Pattern | 630x405mm |
| VESA | 200x200;400x200;300x300;400x400;600x400;400x300;300x200 |
| Tilt | +5°~-10° |
| Profile | 50mm |
| Bubble Level | No |
| Bubble Level mount | No |
| Anti-theft | No |
| Cable Management | No |
| Wall separated | No |
| Panel separated | Yes |
| AV Component Mount | No |
| Freely Tilting | No |
| Freely Height Adjustable | No |
| Motorized | No |
| Curved TV Available | NO |
| User Manual | Yes |
| Power Plug | NO |
| Magnetic | NO |
